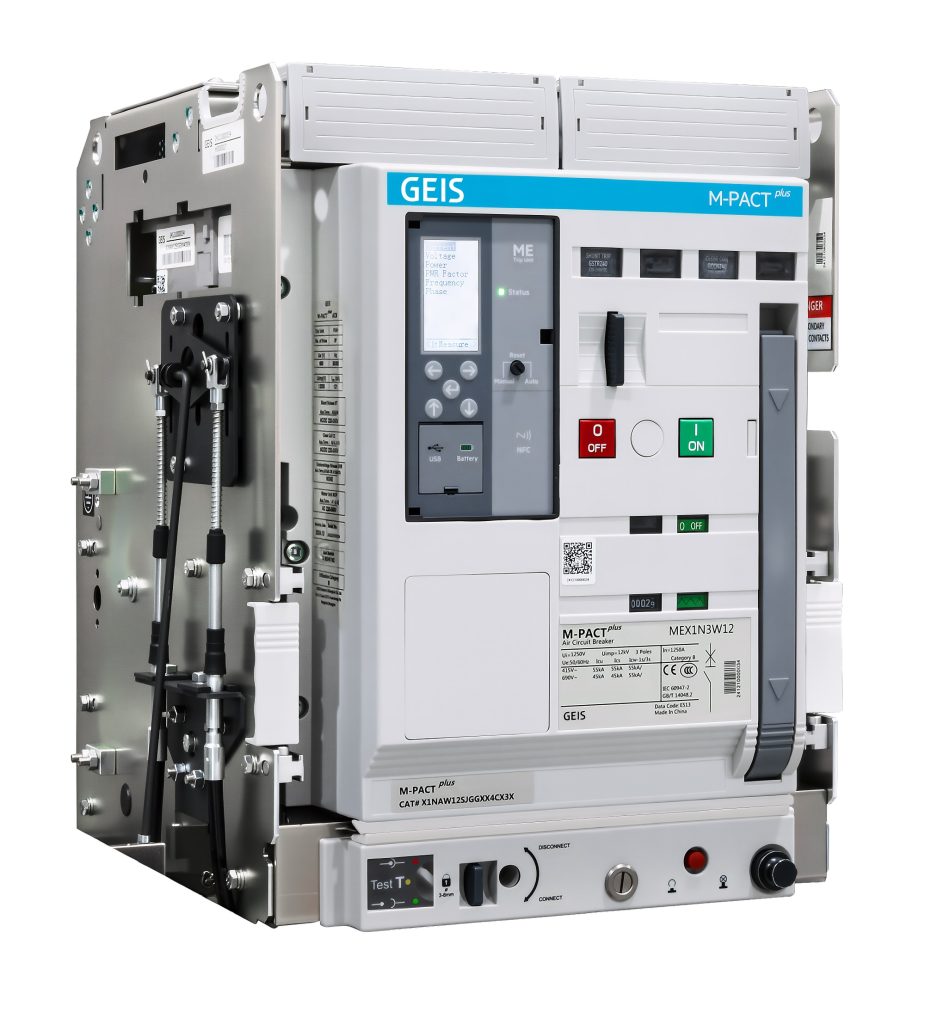

M-PACT Plus Air
Circuit Breaker

A new generation of intelligent control unit, using new technology to make the  circuit breaker provide safer and more reliable circuit protection features a variety of electrical  parameters measurement and display. It can be connected via Modbus, 4G,

Bluetooth, NFC, plug and play bus, APP online monitoring and other ways to  achieve interconnection with the circuit breaker.

Bluetooth provides a safe way to operate the circuit breaker, improving the  safety of field operation. NFC can also read the stored data in the case of power failure.

• China CCC/CQC, EU CE/CB, NorthAmerica UL certification
• Icu = Ics up to 150kA, rated current: 6,400 A, high voltage up to AC1, 150V/80kA
• Full electrical measurement and protection: voltage/current protection, reverse power protection, current setting range: 0.2-1xIn
• Record overload, short circuit, and grounding events, and capture  optional fault waveform
• Color display of control unit, large screen, with red full screen fault alarm
• RELT short-circuit allowable energy limit, dual settings, protection operation safety
• Patented design of dislocation deionization partition arc  extinguishing, with high voltage and high breaking
• Mechanical life up to 40,000 cycles
• Suitable for use under the temperature between -40°C and 70°C at  an altitude of 2,000 meters without capacity reduction
• Interconnection with circuit breakers can be achieved through Modbus,  Bluetooth, NFC, APP online monitoring and other ways
